LigoWave LigoSU 5-N/ 5-20/ 5-23 Point-to-multiple wireless transmission
LigoWave LigoSU 5-N/ 5-20/ 5-23 High-performance 5 GHz subscriber unit Part of RapidFire series LigoPTMP series point to multipoint system delivers 600+ Mbps capacity. Carrier grade design, extremely simple setup and maintenance make the product ideal for high capacity and high performance demanding deployments in any conditions.
Category：LigoVision, LigoWave, Product
86+13823702426

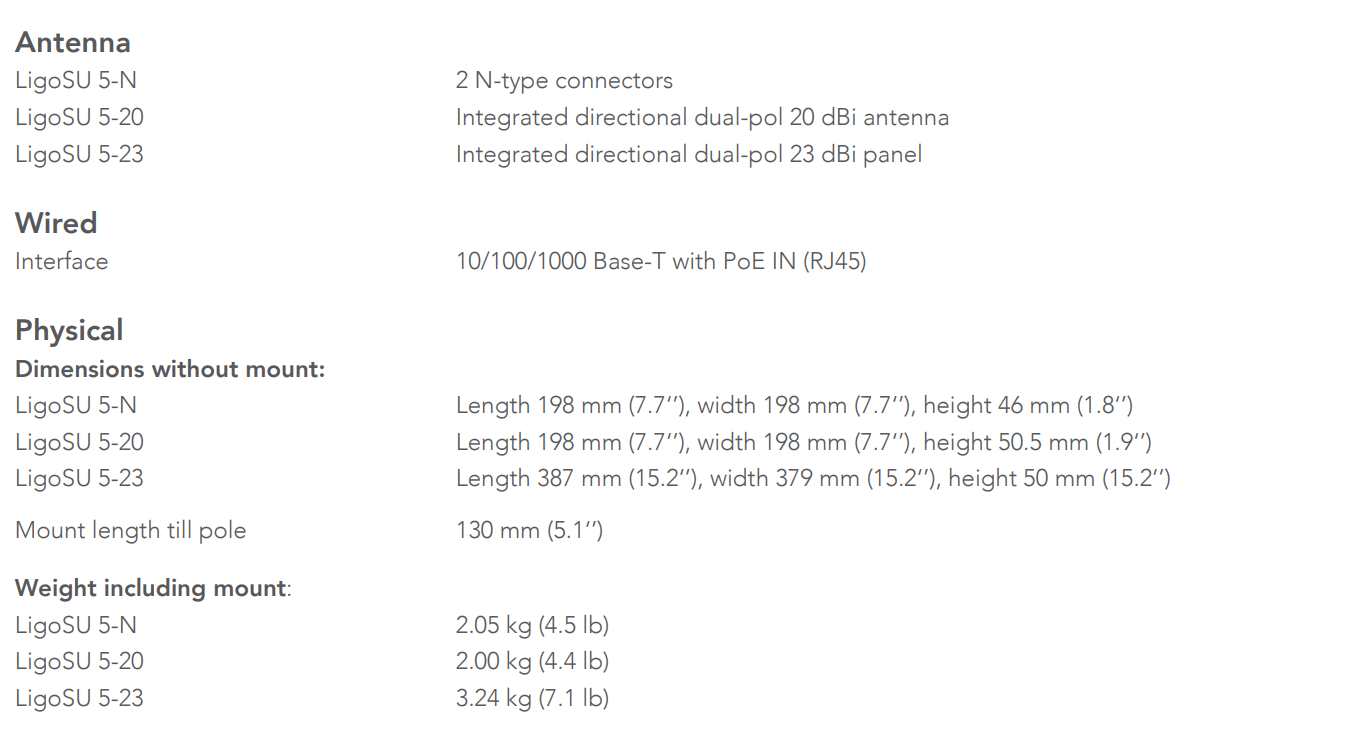

Available models
LigoSU 5-N
Subscriber unit with N-type connectors for the external antenna.

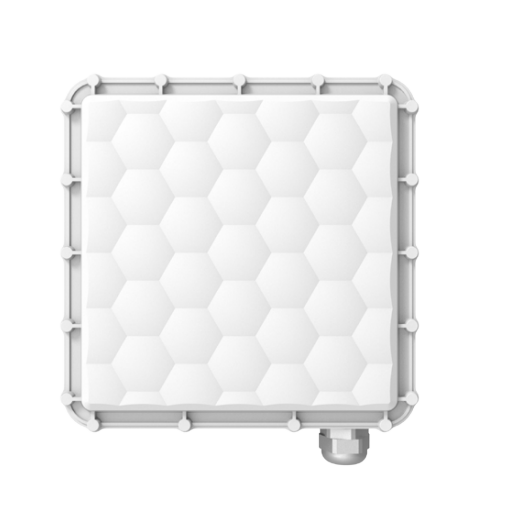

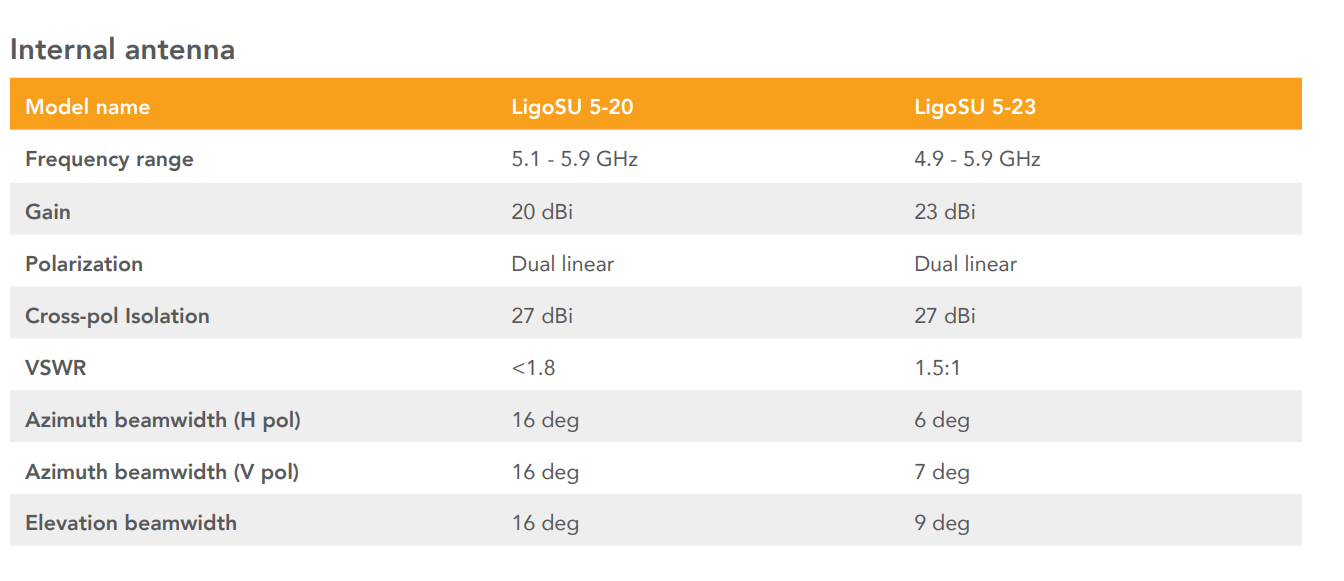

LigoSU 5-20
Subscriber unit with an integrated directional 20 dBi antenna.

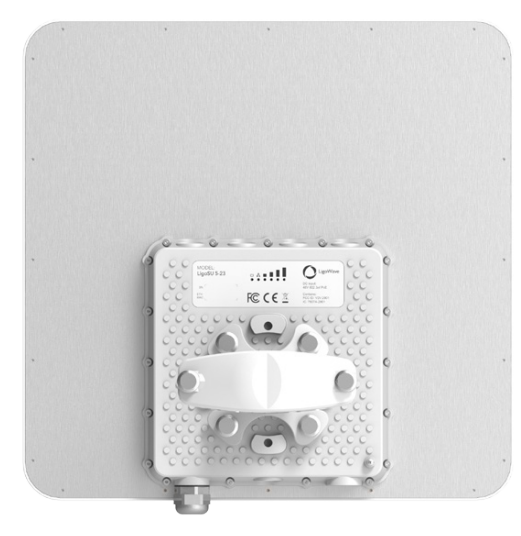

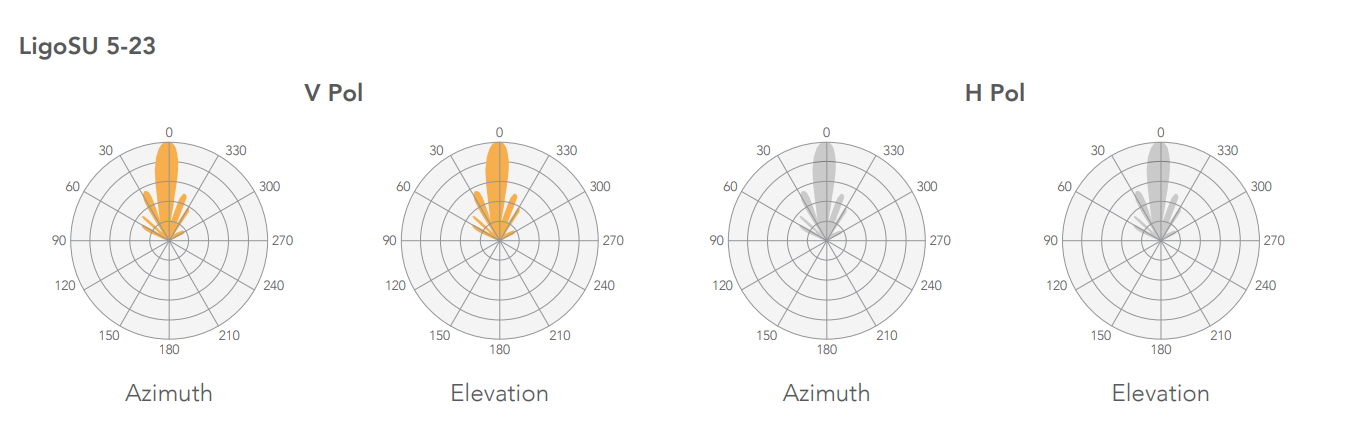

LigoSU 5-23
Subscriber unit with an integrated
directional 23 dBi antenna.

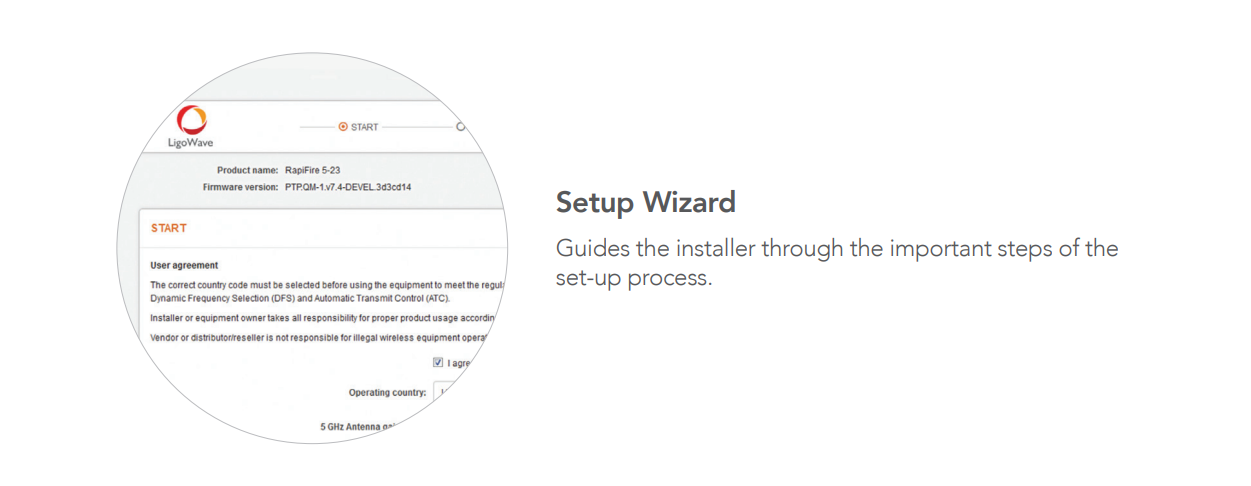

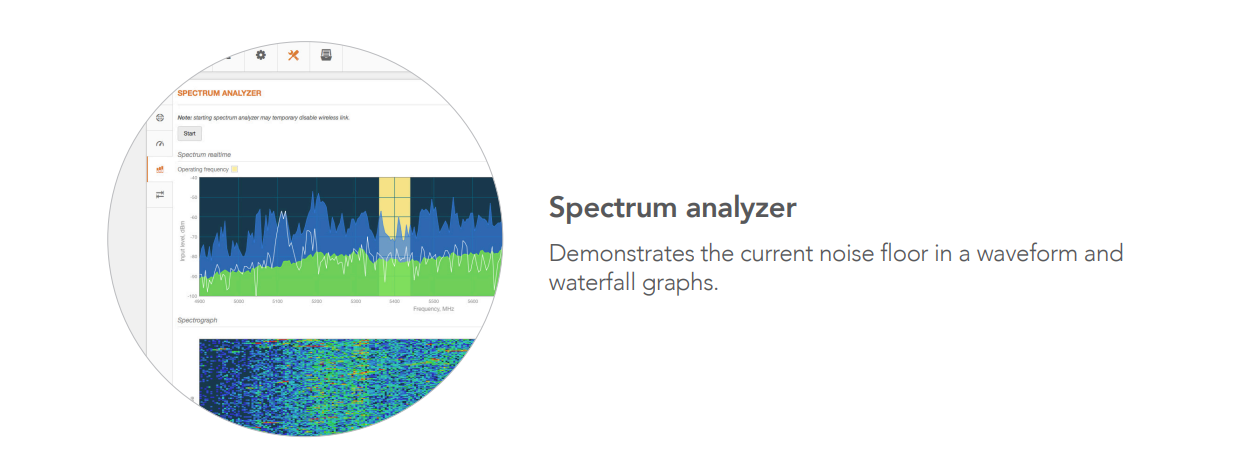

Easy pre-configuration and maintenance
A new approach to setting up and maintaining your network
Pre-configuration

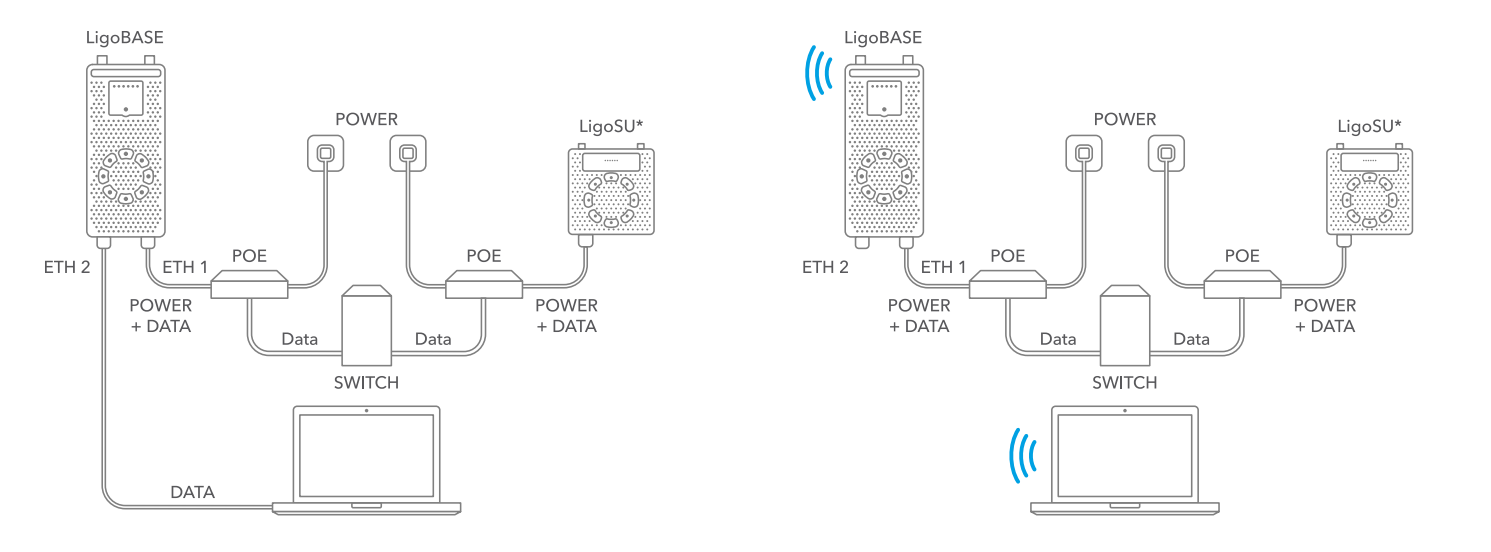

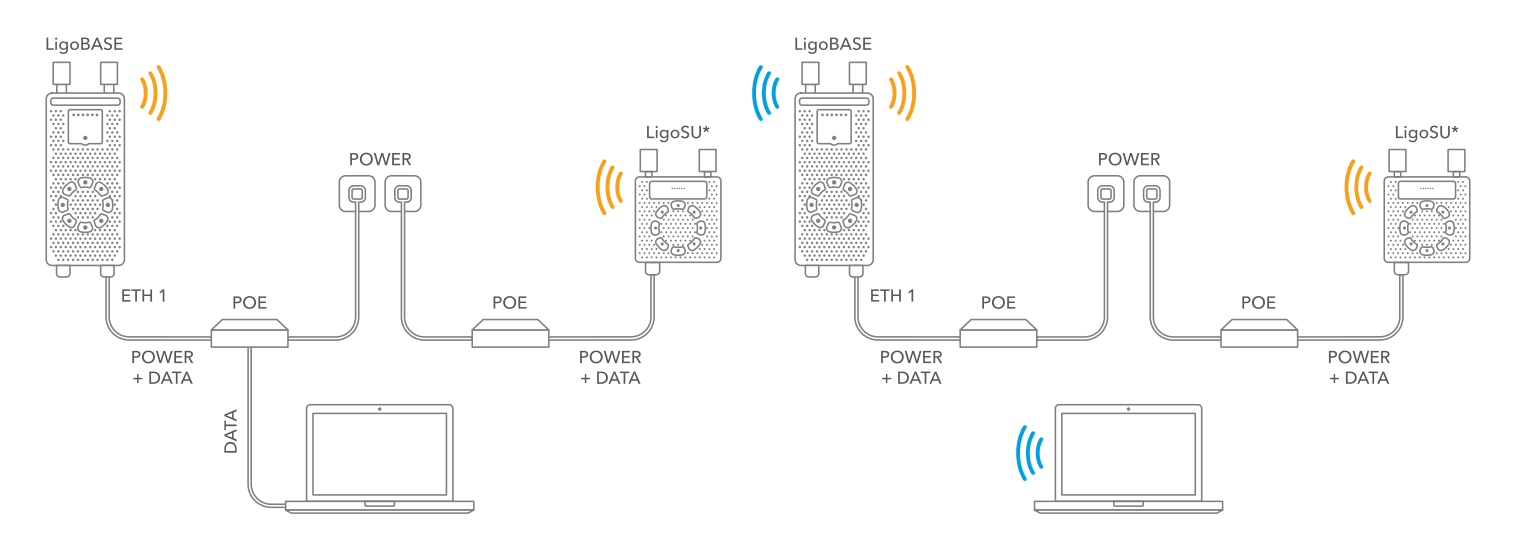

Multiple options to pre-configure LigoPTMP devices are displayed in the scheme below. Devices can be connected with each other using wired or wireless connectivity. End-user device can also connect to the LigoBASE device using 2.4 GHz access radio or using wire to the Ethernet port of the LigoBASE device. LigoPTMP devices can be discovered using Bonjour, CDP and SSDP protocols as well.
Wireless
Wired
