LigoWave DLB 5-20ac 5GHz High-Capacity Wireless Bridge
500+ Mbps throughput - a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation - 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
86+13823702426
Incredible performance
ligowave dlb 5-20ac 500+ Mbps throughput – a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory, the LigoDLB 5-15 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over highest the modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.
LinkCalc
LinkCalc is LigoWave’s free wireless outdoor link planner and bandwidth calculator. It allows users to design wireless PTP/PTMP networks using virtual maps without the need for on-site field surveying or specialized tools. The data provided with LinkCalc can also be used to quote potential customer projects.
iPoll 3: Enhanced Performance Protocol
LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.
Specifications
| Product/ distance recomendation | PTMP mode | PTP mode |
| LigoDLB 5-20ac | 10 km/ 6.21 mi | 15 km/ 9.32 mi |
Wireless
| WLAN standard | IEEE 802.11 a/n, iPoll (proprietary) |
| Radio mode | MIMO 2×2 |
| Radio frequency band | 5GHz models: 5.150 – 5.850GHz (FCC 5.150 – 5.250 and 5.725 – 5.850GHz) (Country Dependent) |
| Transmit power | Up to 30dBm (Country dependent) |
| Receive sensitivity | Varying between -97 and -75 dBm depending on modulation |
| Channel size | 5,10, 20, 40 MHz |
| Modulation schemes Data rates | 802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) 802.11ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30Mbps 802.11ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps |
| Error correction | FEC, Selective ARQ |
| Duplexing scheme | Time division duplex |

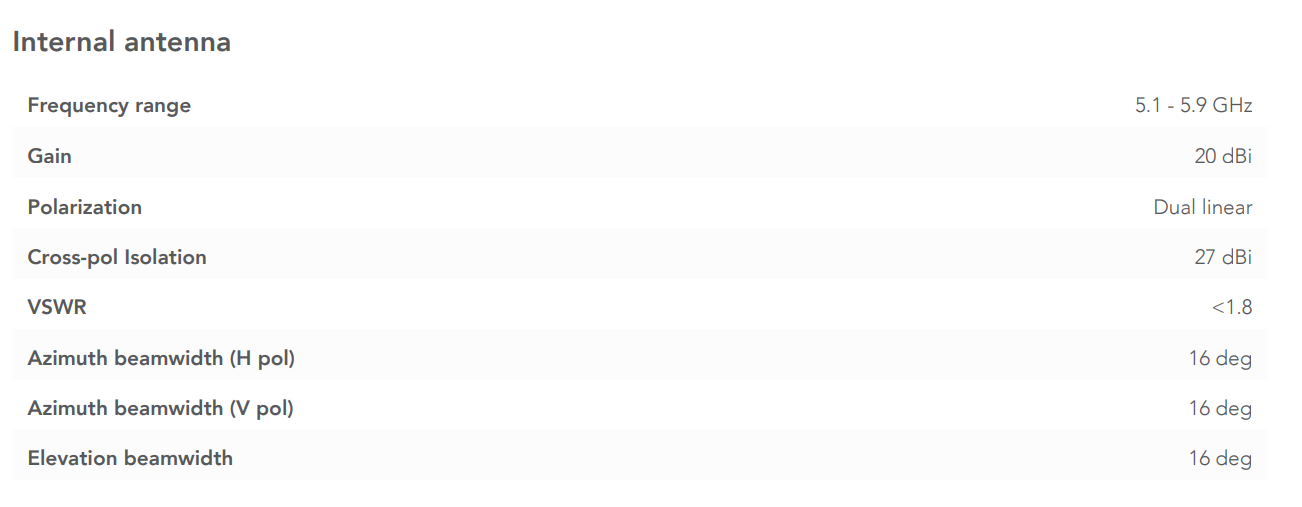

Antenna
| Type | Integrated directional panel antenna |
| Gain | 20 dBi |
Wired
| Interface | 10/100 Base-T, RJ45 |

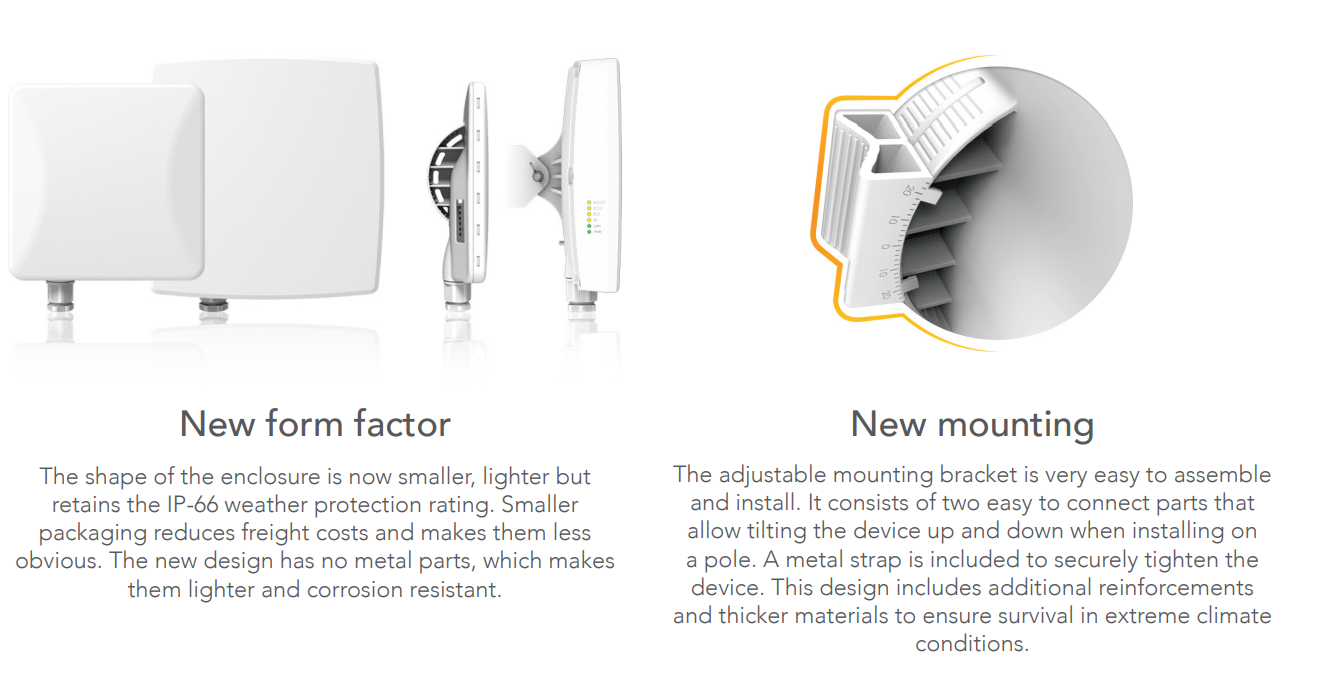

Physical
| Dimensions | 216mm (8.5 ‘’), 184mm (7.2 ‘’), 80mm (3.1 ‘’) |
| Weight | 413 g (0.91 lb) |
| Mounting | Pole mounting bracket included |
Power
| Power supply | 24 VDC passive PoE (AC to 24 VDC adapter is included in the package) |
| Power source | 100 – 240 VAC |
| Power consumption (max) | 10W |
Environmental
| Operating temperature | -40°C (-40 F) ~ +65°C (+149 F) |
| Humidity | 0 ~ 90 % (non-condensing) |
Management
| System monitoring | SNMP v3, Syslog, Web UI, WNMS |
Regulatory
| Certification | FCC/IC/CE |
