Integrated 5 GHz (2×2) MiMo radio
Integrated dual – polarized 90 degree sector antennna (20 dBi)
Frequency 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
Up to 30 dBm output power (country dependent)
Improved noise immunity
Dedicated 720 MHz CPU with 128 MB of Flash and RAM
iPoll 3  – proprietary protocol for data transmission
Powerful OS
Gigabit Ethernet port
37 – 56 VDC PoE 802.3af (AC to DC adapter included)
IP-67 standards rated enclosure
Free NMS (Infinity Controller)
Professional mounting bracket

Product Available upon Special Request
For more Information

Specifications

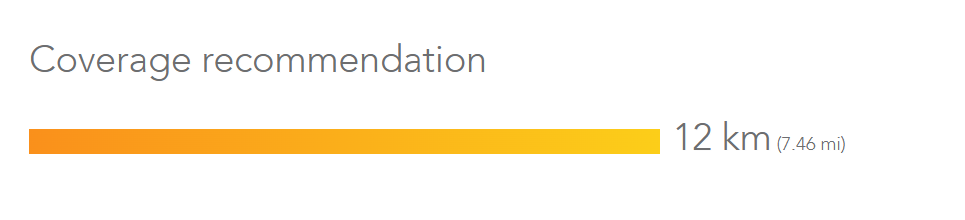

Product/ distance recomendation	Coverage recommendation
LigoDLB 2-90-16 PRO	10km (6.2mi)
LigoDLB 2-90-19 PRO	(8.7mi)
LigoDLB 5-90-17 PRO	7km (4.3mi)
LigoDLB 5-90-20 PRO	12km (7.5mi)

Wireless

WLAN standard	IEEE 802.11a/b/g/n, iPoll 3
Radio mode	MIMO 2×2
Radio frequency band	2GHz models: 2.402 – 2.492GHz (FCC 2.412 – 2.462GHz) 5GHz models: 5.150 – 5.850GHz (FCC 5.150 – 5.250 and 5.725 – 5.850GHz)
Transmit power	Up to 29dBm (country dependent)
Channel size	5,10, 20, 40 MHz
Modulation schemes Data rates	802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11b: DSS (CCK, DQPSK, DBPSK) 802.11n: 300, 270, 240, 180, 120, 90, 60, 30Mbps 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2, 1Mbps
Error correction	FEC, Selective ARQ
Duplexing scheme	Time division duplex

Antenna

Type	Integrated dual-polarized 90° sector antenna
Gain	LigoDLB 2-90-16 PRO – 16dBi LigoDLB 2-90-19 PRO – 19dBi LigoDLB 5-90-17 PRO – 17dBi LigoDLB 5-90-20 PRO – 20dBi

Wired

Interface

10/100/1000 Base-T, RJ45 (802.3af)

Physical

Dimensions*	574mm (22.6 ‘’), 114mm (4.5 ‘’), 46mm (1.8 ‘’)/ 942mm (37.1 ‘’), 114mm (4.5 ‘’), 46mm (1.8 ‘’)
Weight**	3000g (6.6lb)/ 3600g (7.94lb)
Mounting	pole mount included

Power

Power supply	37 – 56VDC PoE 802.3af (AC to DC adapter included)
Power source	100 – 240 VAC
Power consumption (max)	10W

Environmental

Operating temperature	-40°C (-40 F) ~ +65°C (+149 F)
Humidity	0 ~ 90 % (non-condensing)

Management

System monitoring	SNMP, Syslog, Web UI, Infinity Controller
Configuration	WebUI, Infinity Controller

Regulatory

Certification

FCC/IC/CE
