Incredible performance

500+ Mbps throughput – a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of flash memory the, LigoDLB 5-15 ac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLB ac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

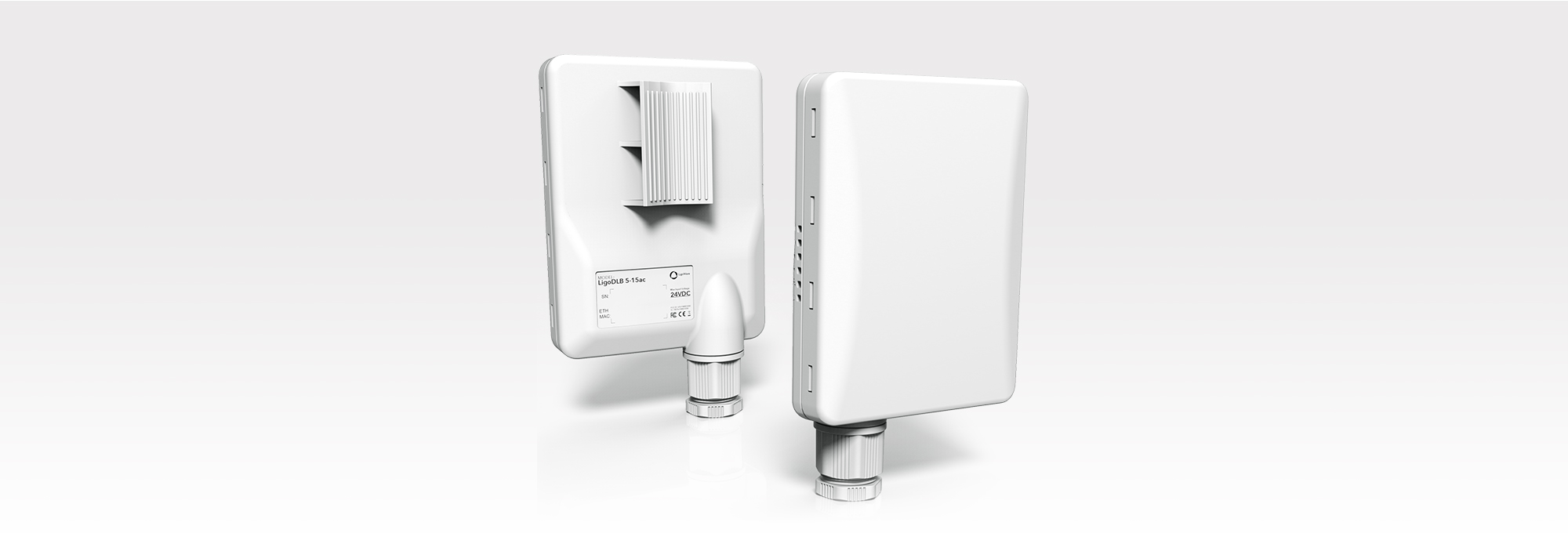

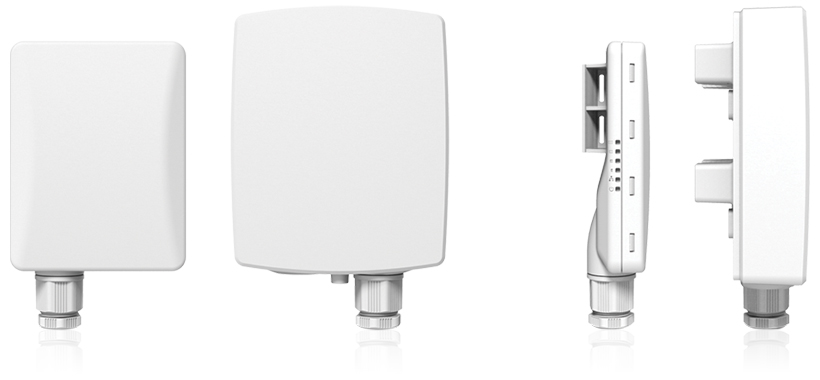

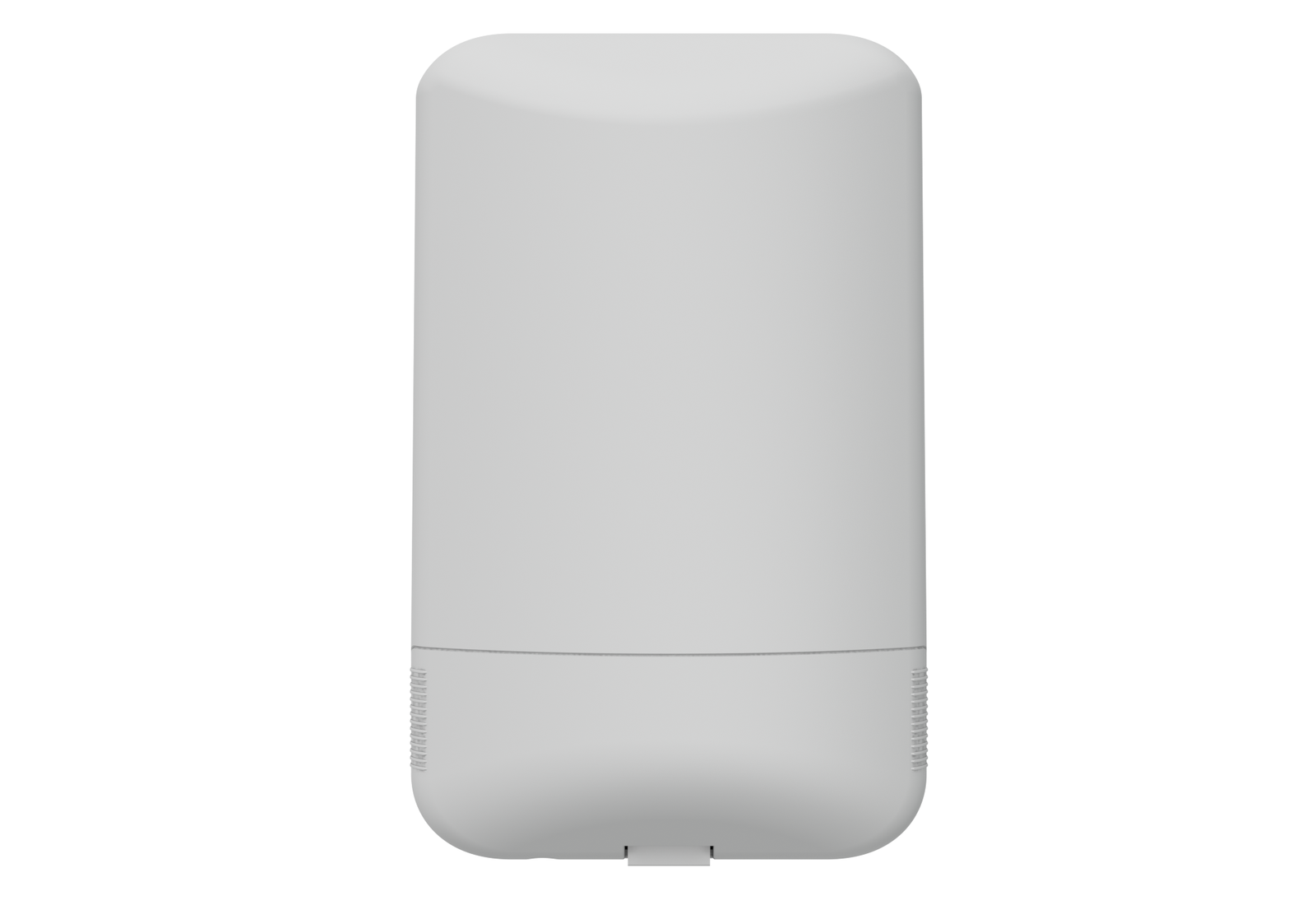

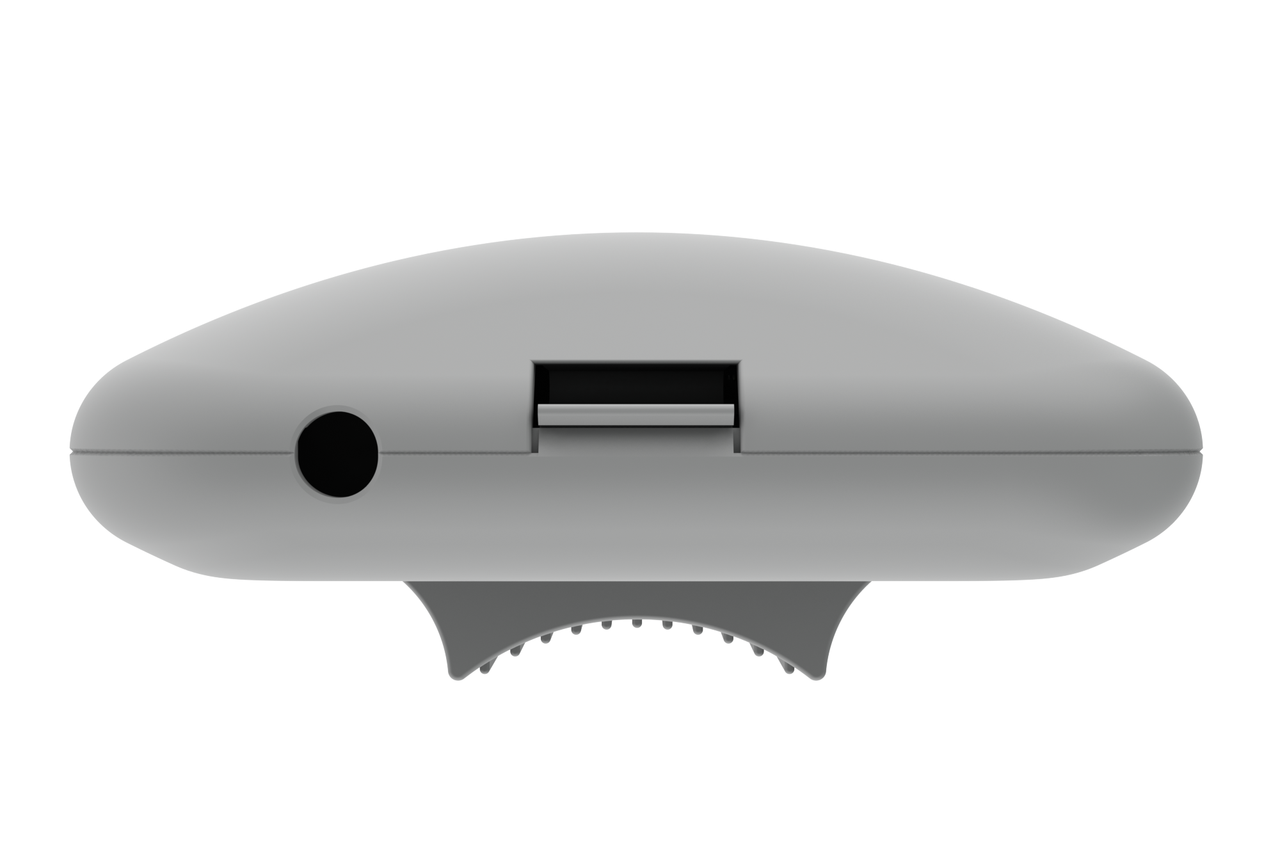

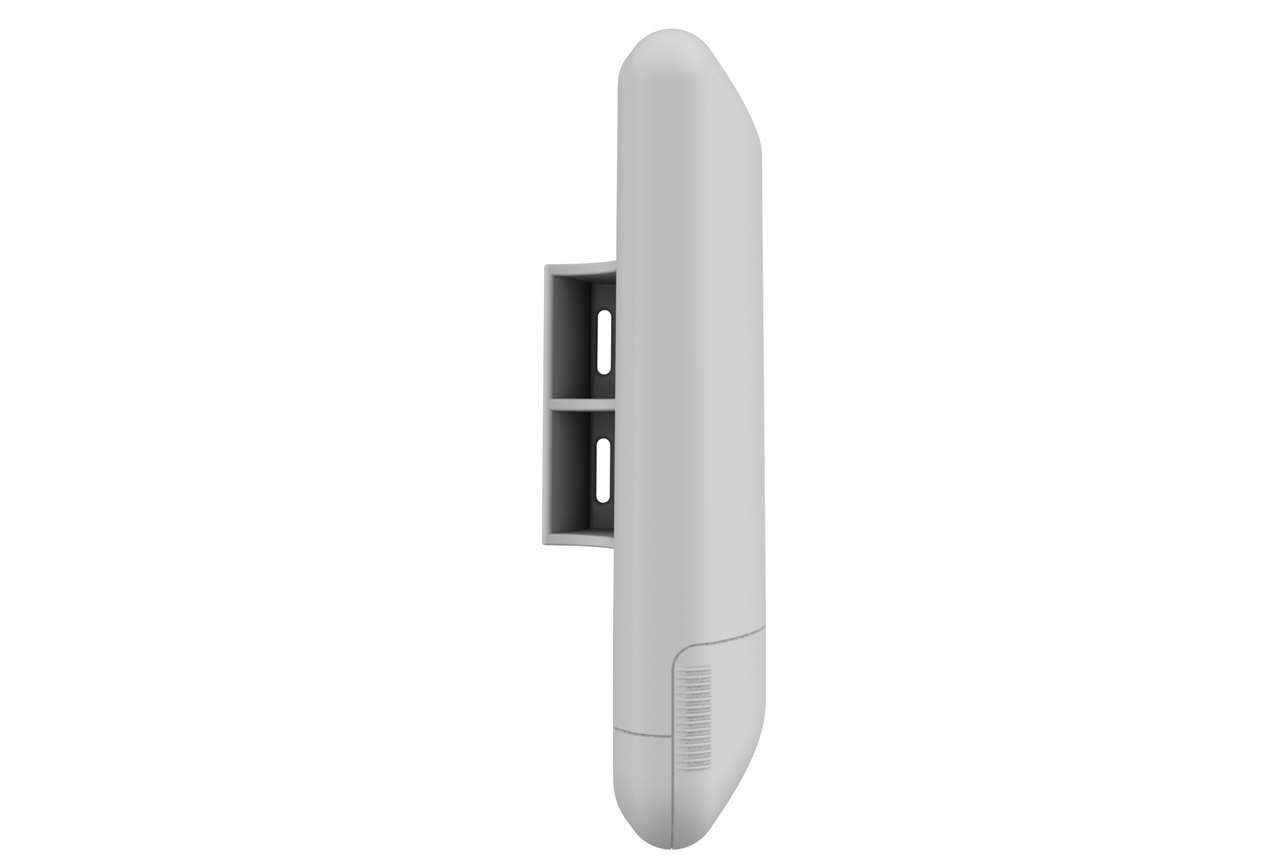

New form factor

The shape of the enclosure is now smaller, lighter but retains the IP-65 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

OS

    The DLB OS is a highly functional and easy to use operating system. This powerful and flexible operating system ensures flawless operation of all DLB hardware devices and effortless setup for those deploying the networks。
 • Smart polling data transmission protocol (iPoll )
 • Dual-fi rmware image support
 • Responsive HTML 5 based GUI
 • 170 Mbps capacity
 • 80,000 PPS rate
 • IPv6 support
 • WNMS compatible

WNMS

  WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifi es a large number of management and monitoring tasks for network administrators. LigoWave’s comprehensive network management system supports several thousands of nodes. Multiple networks may be maintained and monitored using one server. A rich feature set helps to diagnose network problems effectively, visualize networks on a map, perform scheduled fi rmware upgrades automatically, track states of devices, get failure alerts, and collect statistics. The Web-based system environment
supports multi-user accounts. Several administrators may manage different networks on the same server, without having access to each other’s equipment. WNMS is available as a stand-alone version for Linux and Windows servers, as a cloud-based system and as a mobile application for Android devices.

Specifications

Product/ distance recomendation	PTP mode	PTP mode
LigoDLB 5-15 ac	3 km	3 km

Wireless

WLAN standard	IEEE 802.11 a/n/ac, iPoll 3
Radio mode	MIMO 2×2
Radio frequency band	5 GHz : 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
Transmit power	Up to 30 dBm (country dependent)
Receive sensitivity	Varying between -95 and -64 dBm depending on modulation
Channel size	5,10, 20, 40,80 MHz
Modulation schemes Data rates	802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) 802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Error correction	FEC，Selective ARQ
Duplexing scheme	Time division duplex

Antenna

Type	Integrated dual-polarized directional panel antenna
Gain	15 dBi

Wired

Interface

10/100 Base-T, RJ45

Physical

Dimensions	158 mm (Length)× 97mm (width )× 38mm (height )
Weight	185 g
Mounting	Pole mounting bracket included

Power

Power supply	24 VDC passive PoE (AC to 24 VDC adapter is included in the package)
Power source	100 – 240 VAC
Power consumption (max)	10 W

Environmental

Operating temperature	-40°C ~ +65°C
Humidity	0 ~ 95 % (non-condensing)

Management

System monitoring	SNMP v1/2c/3 server, Syslogs, system alerts via e-mail and SNMP trap
Configuration	WebUI，WNMS

Regulatory

Certifi cation

FCC/IC/CE
