Highlights:

2.402 – 2.492 GHz support
80,000 PPS
170 Mbps capacity
High output power 31 dBm radio
Integrated 16 dBi directional dual – polarized sector antenna

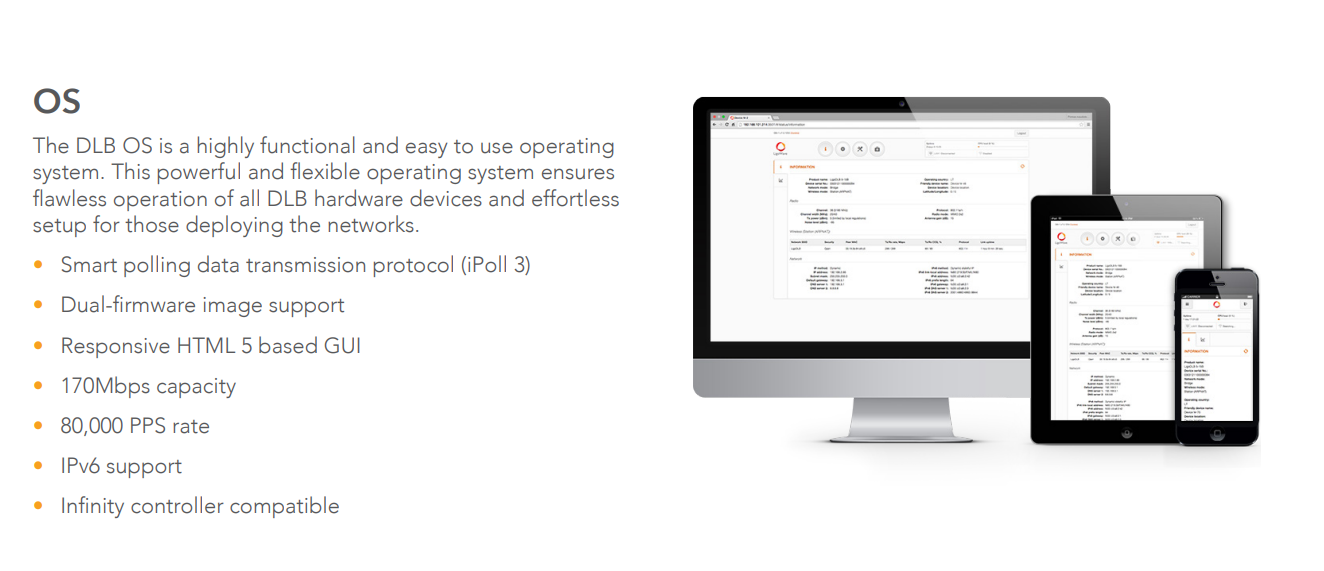

Powerful OS
Smart polling data transmission protocol (iPoll 3)
Weather proof (IP-65 rated) design
Free NMS (Infinity Controller)
Responsive HTML 5 based GUI
Wall and pole mounting option

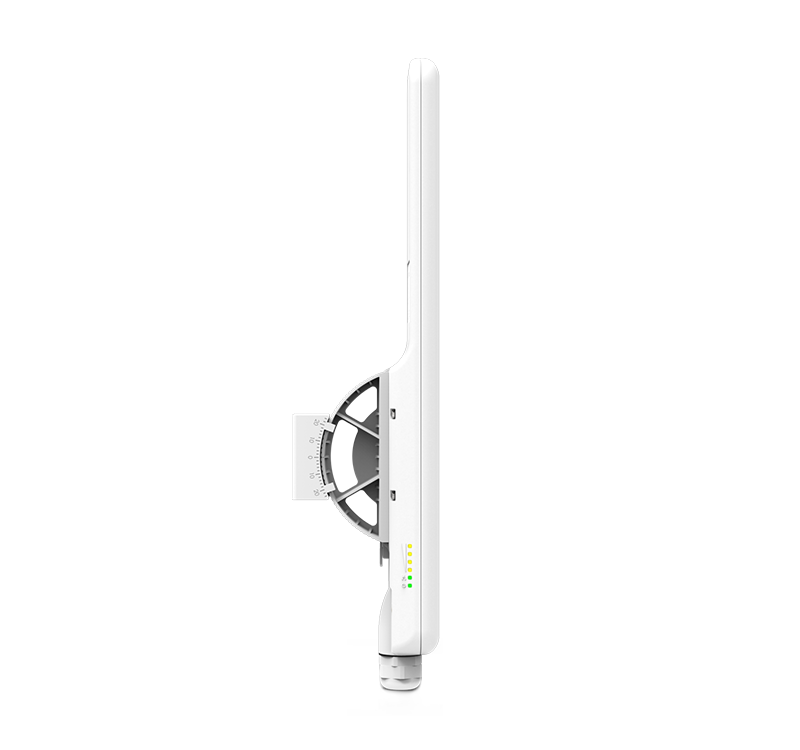

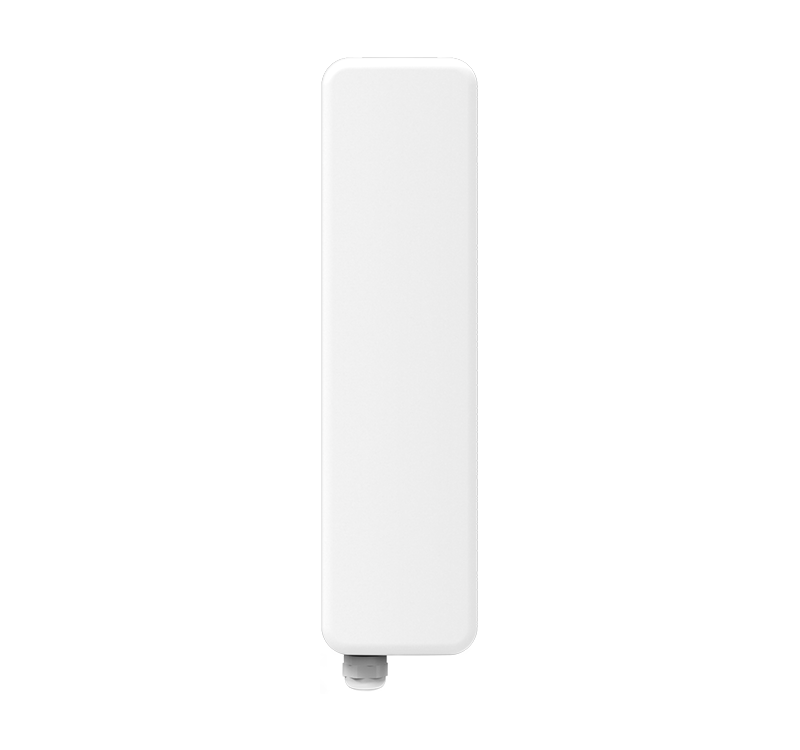

LigoWave’s DLB 2-90n delivers the highest performance and stability available in the 2.4GHz Base Station class. This product combines a robust, highly advanced 802.11n radio core containing MIMO 2×2 technology with an integrated, high gain, dual polarized, 100° sector antenna. The device is powered by a reliable, advanced, and feature-rich operating system, allowing the creation of high throughput, stable wireless networks quickly and effectively. Although the DLB 2-90n was designed mainly as a
Base Station it also supports client-operating mode, which greatly extends the possible application scenarios.

The smart dynamic polling based protocol (iPoll 3) ensures reliable communication even in congested areas with 64 client devices connected to a base-station.

Equipped with LigoWave’s dual firmware image feature, remote software upgrades are assured even if a power failure interrupts the process. The device will restart using the prior firmware in the event of an upgrade failure.

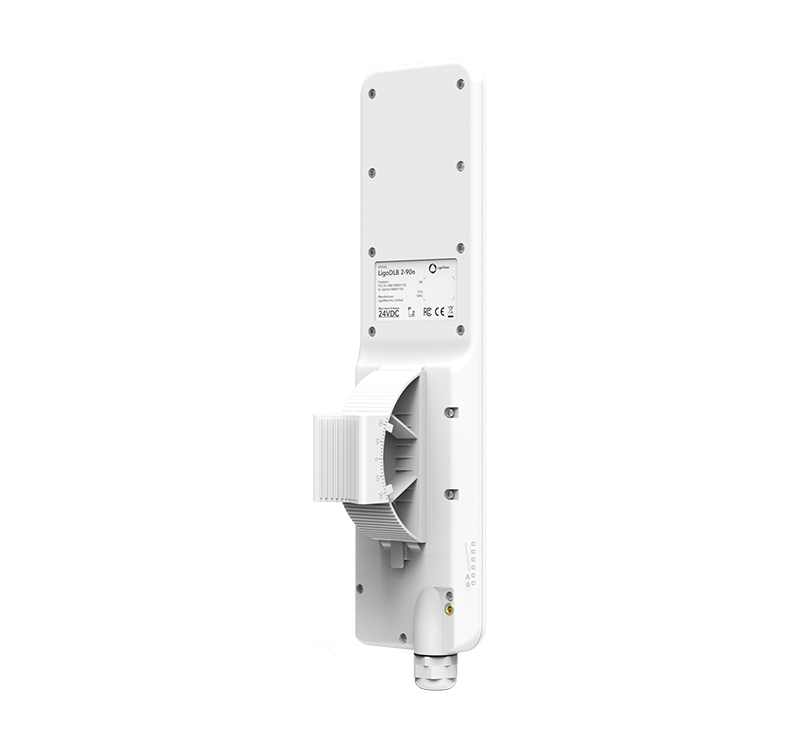

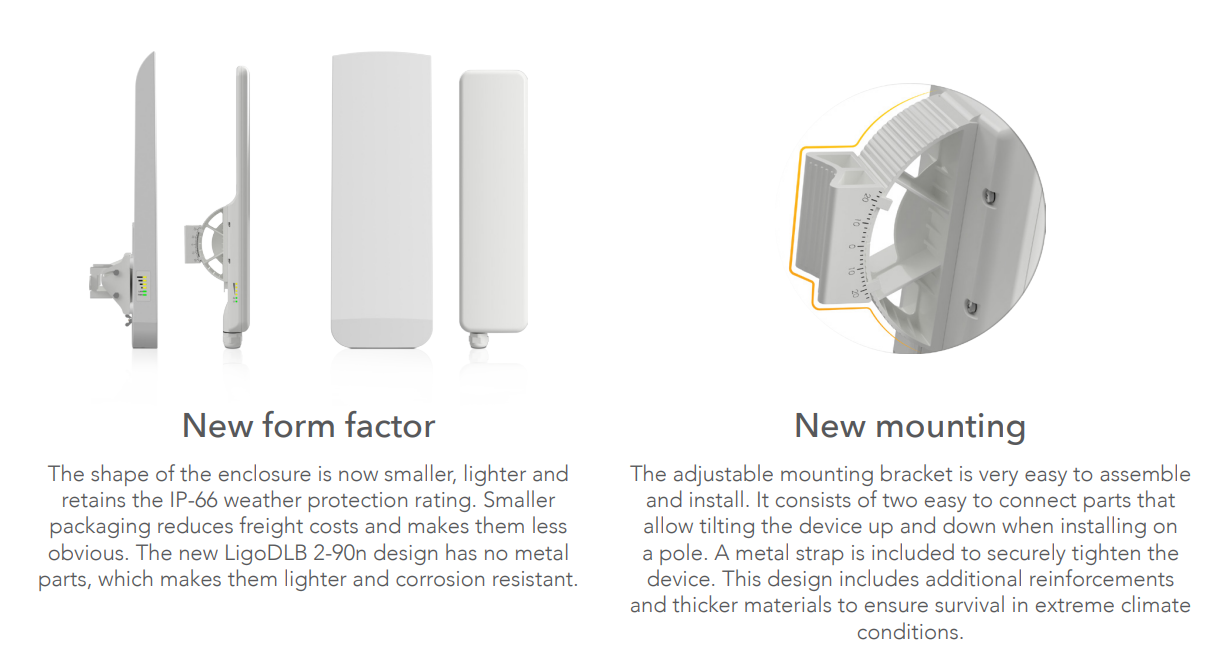

The enclosure is made of polycarbonate plastic with UV inhibitors to provide years of outdoor exposure in direct sunlight without cracking. The DLB 2-90n was designed and tested to meet an IP-65 rating as well as vibration, temperature, drop, salt, fog, and electrical surge standards to ensure a high level of reliability unsurpassed in the industry. It is equipped with a grounding lug and a grounded 24-volt PoE to allow a professional installation, resistant to electrical surges. The mounting bracket permits installation on a wall or a pole and provides up to 30 degrees of down-tilt adjustment.

Specifications

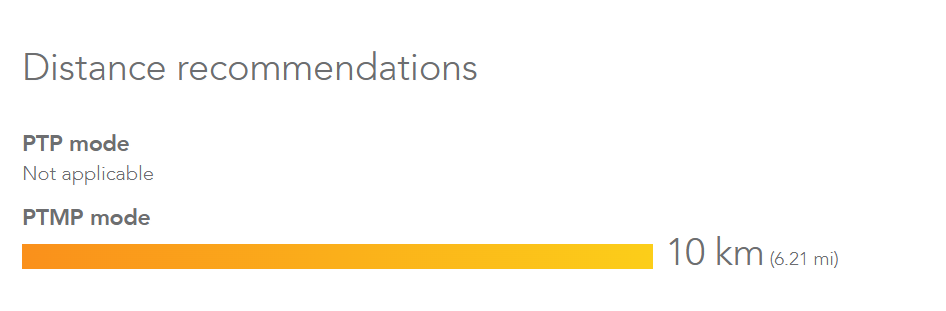

Product/ distance recomendation	PTMP mode	PTP mode	PTP mode (full capacity)
DLB 2-90n	10 km/ 6.21 mi	N/A	N/A

Wireless

WLAN standard	IEEE 802.11 a/n, iPoll (proprietary)
Radio mode	MIMO 2×2
Radio frequency band	2.402-2.492GHz (FCC 2.412-2.462GHz)
Transmit power	Up to 31dBm (Country Dependent)

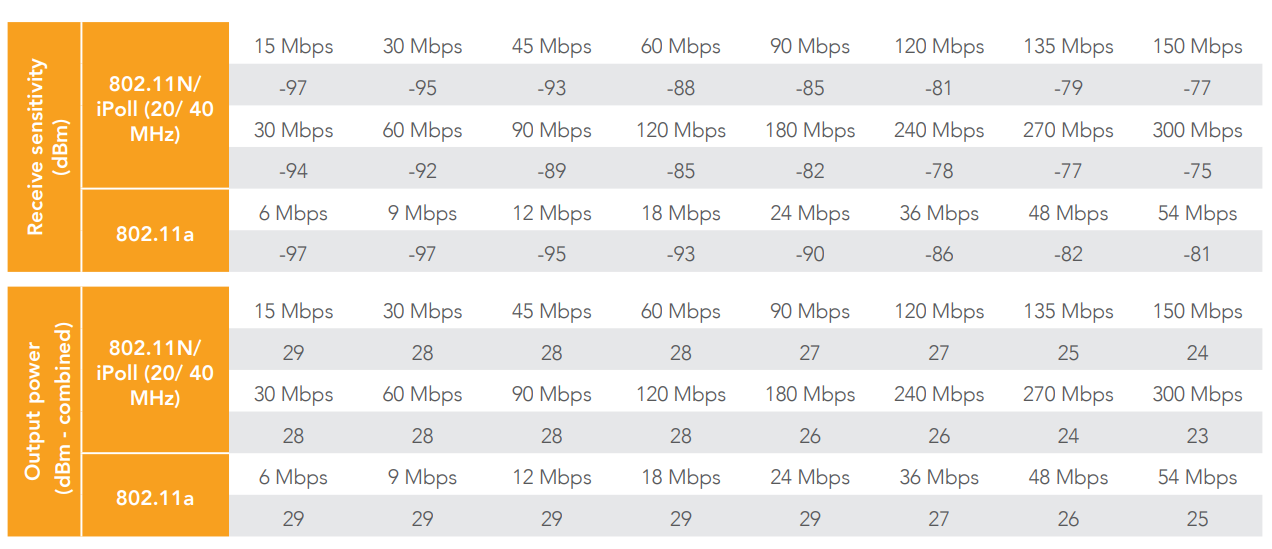

Receive sensitivity	Varying between -97 and -75 dBm depending on modulation
Channel size	5,10, 20, 40 MHz
Modulation schemes Data rates	802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) 802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps 802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
Error correction	FEC, Selective ARQ
Duplexing scheme	Time division duplex

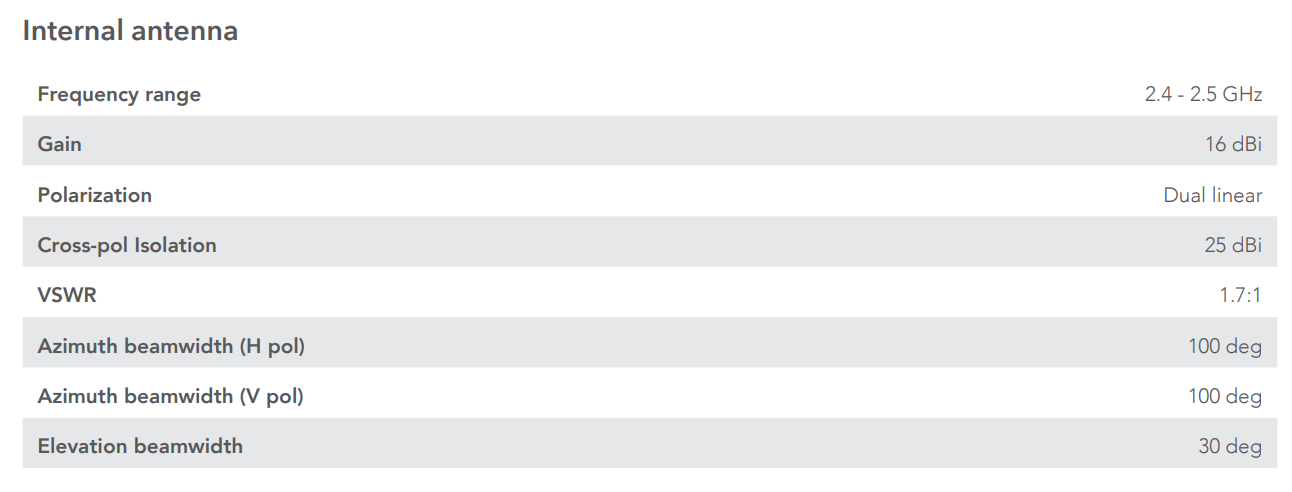

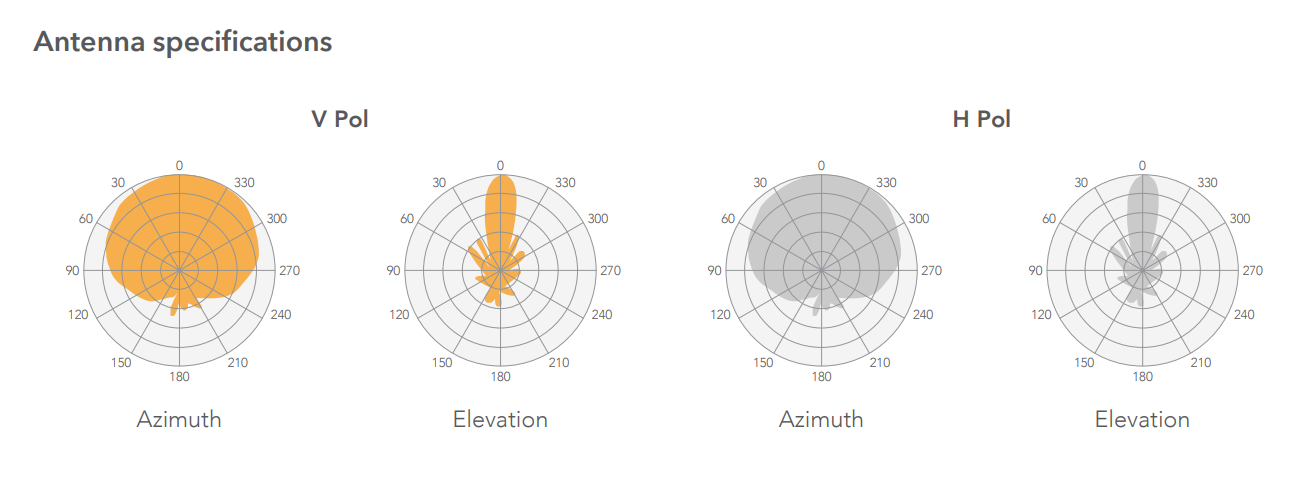

Antenna

Type	Integrated Directional Dual-Polarized Panel
Gain	16 dBi

Wired

Interface

10/100 Base-T, RJ45

Software

Wireless operating modes	Access point (auto WDS), access point (iPoll 3), station (WDS, iPoll 3), station (ARP NAT)
Wireless techniques	Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC)
Wireless security	WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation
Wireless QoS	4 queues prioritization on iPoll 3
Network operating modes	Bridge, router iPv4, router IPv6
Network techniques	Routing with and without NAT, VLAN
WAN protocols	Static IP, DHCP client, PPPoE client
Services	DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog
Management	HTTP(S) GUI, SSH, SNMP read, Infinity Controller, Telnet
Tools	Site survey, link test, antenna alignment

Physical

Dimensions	Length 430 mm (16.9 ‘’), width 150 mm (5.9 ‘’), height 40 mm (1.6 ‘’)
Weight	1000 g (2.2 lb)
Mounting	Combination wall / pole mount included

Power

Power supply	12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package)
Power source	100 – 240 VAC
Power consumption (max)	4.5 W

Environmental

Operating temperature	-40°C (-40 F) ~ +65°C (+149 F)
Humidity	0 ~ 90 % (non-condensing)

Management

System monitoring

System monitoring: SNMP v3, Syslog, Web UI and Infinity Controller

Regulatory

Certification

FCC/IC/CE
