Powerful hardware platform Based on a QCA 9557 chipset (720 MHz) and 128 MBytes of RAM/Flash memory the LigoDLB PRO series access points are an ideal solution for resource demanding installations with a high number of clients connected to a single AP. The 48V Gigabit Ethernet port (802.3af) allows utilizing the full capacity of the base-stations.
Integrated antenna design
The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI.
Powerful hardware platform Based on a QCA 9557 chipset (720 MHz) and 128 MBytes of RAM/Flash memory the LigoDLB PRO series access points are an ideal solution for resource demanding installations with a high number of clients connected to a single AP. The 48V Gigabit Ethernet port (802.3af) allows utilizing the full capacity of the base-stations. Integrated antenna design The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI.
Highlights Integrated 2.4 GHz (2×2) MiMo radio Integrated dual – polarized 90 degree sector antennna (16 dBi) Frequency 2.402 – 2.492 GHz (FCC 2.412 – 2.462 GHz) Up to 30 dBm output power (country dependent) Improved noise immunity Dedicated 720 MHz CPU with 128 MB of Flash and RAM iPoll 3 – proprietary protocol for data transmission Powerful OS Gigabit Ethernet port 37 – 56 VDC PoE 802.3af (AC to DC adapter included) IP-67 standards rated enclosure Free NMS (Infinity Controller) Professional mounting bracket

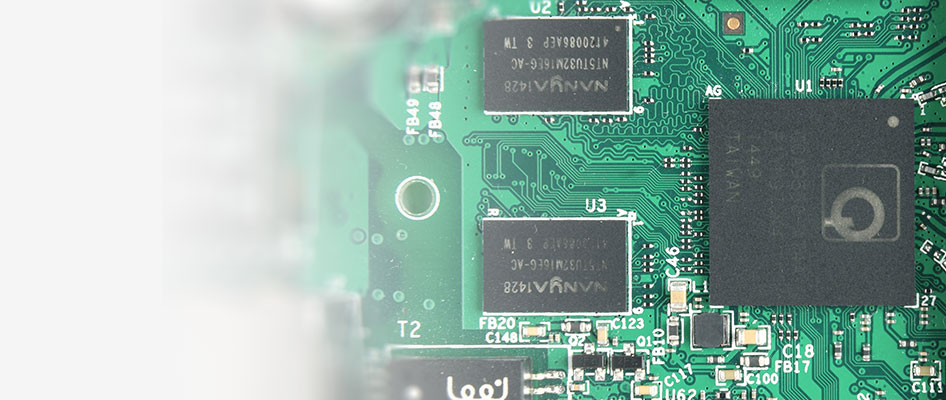

Powerful hardware platform
Based on a QCA 9557 chipset (720 MHz) and 128 MBytes of RAM/Flash memory the LigoDLB PRO series access points are an ideal solution for resource demanding installations with a high number of clients connected to a single AP. The 48V Gigabit Ethernet port (802.3af) allows utilizing the full capacity of the base-stations.
Improved noise immunity
Metal enclosure works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower. Apart from RF shielding the metal housing works as a heatsink, allowing better RF performance by dissipating the heat generated by the radio

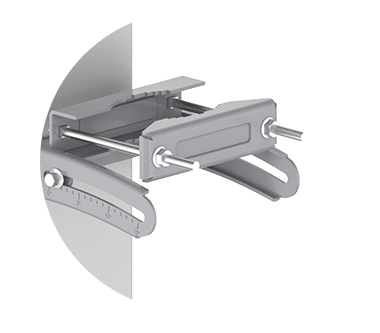

Solid mount

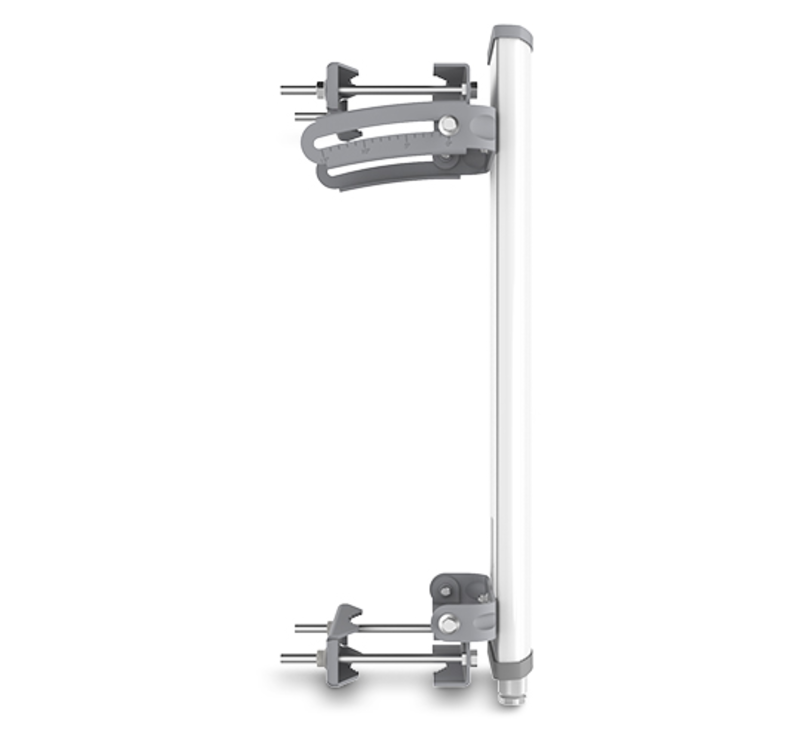

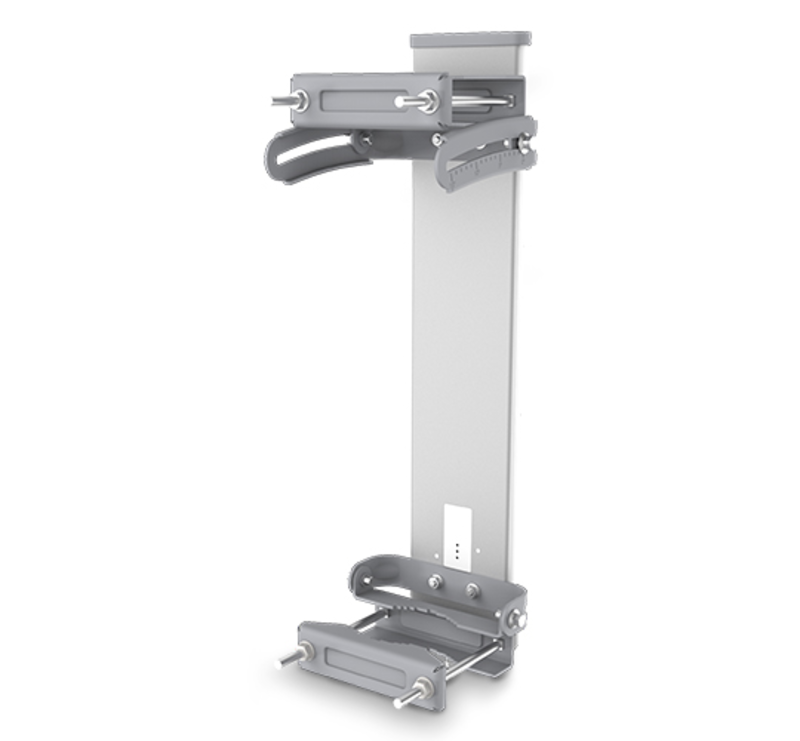

The LigoDLB PRO mounting bracket allows 15° down-tilt when doing antenna alignment. Supported pole diameters are from 25 mm (0.98 inch) to 75 mm (2.95 inches). All devices have an IP-67 enclosure and integrated surge suppression to provide best in class protection from harsh weather conditions in any climate zone.

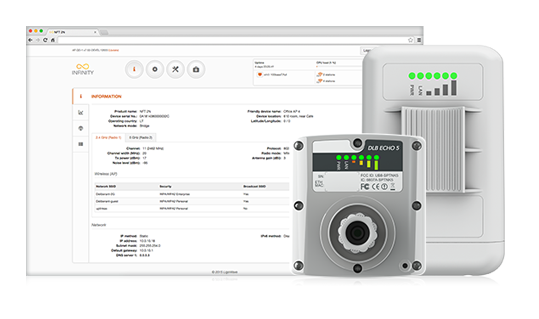

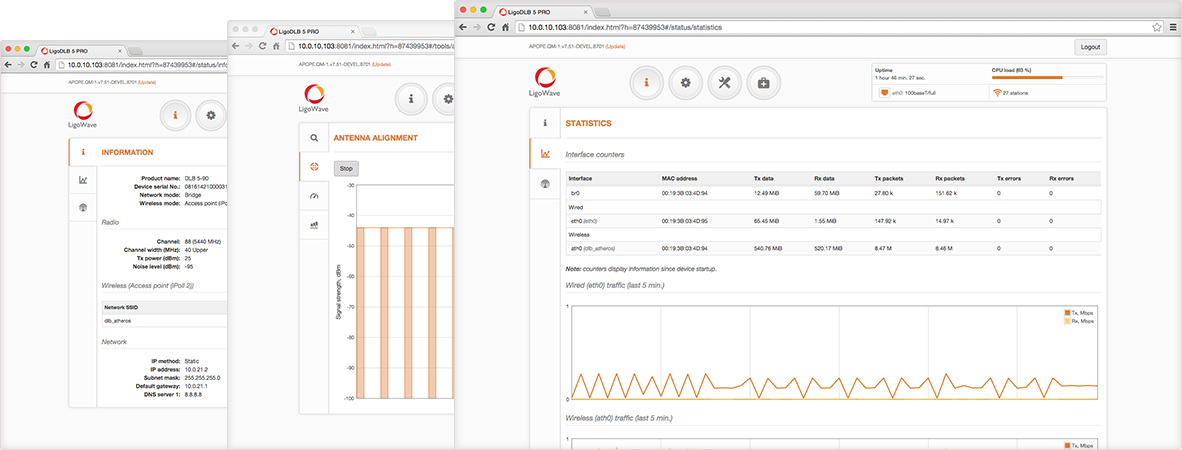

LigoWave OS
LigoWave OS contains all of the essential features for establishing fast, strong, and reliable PTMP networks. The LigoWave OS includes IPv6 Bridge & Router Support, SSDP & Bonjour Device Discovery Options, Flexible Traffic Shaping, DHCP Option 82, and more. The user interface is built on HTML5 with responsive design.

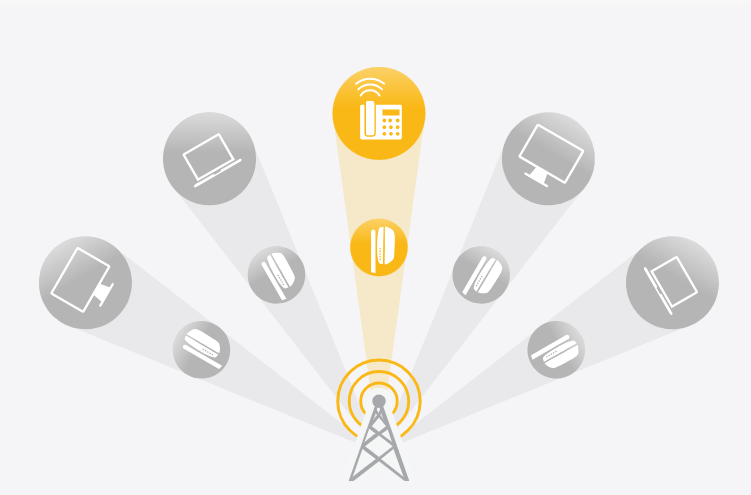

Poll 3: Enhanced Performance Protocol
LigoWave’s iPoll™ PTMP (Point-to-Multi-Point) proprietary protocol is an innovative solution, eliminating transmission congestion and close-cluster interference created in wireless PTMP installations.
Hotspot scenario support
Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.
