Product Overview

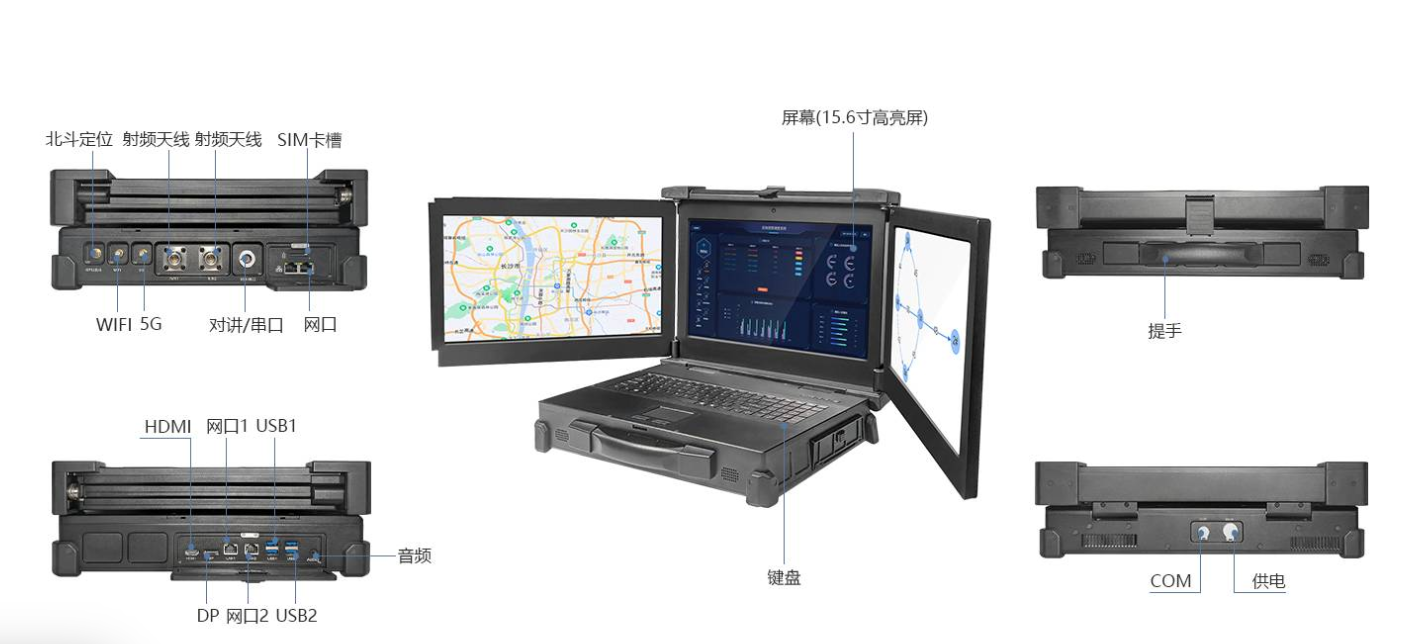

The SF-6500BXZH portable multi-function command and dispatch platform has a three-screen dispatch, which can display various emergency dispatch data information situation through a split screen. Product built-in 64-bit Win10 operating system, i7 processor, 8G running memory, 256G storage memory. With 15.6 inch HD bright screen. The wireless broadband AD hoc network module is integrated inside, which can be used as an AD hoc network transmission node, and can also be used as an aggregation node to view the audio and video signals and geographical location information of each AD hoc network node. The commander can make correct and quick judgment on the collected information and assign tasks. To meet the user’s communication and transmission needs to the greatest extent. Flexible installation and use, easy operation and maintenance, can provide a variety of frequency band customization, expand WIFI, GPS, 3G/4G and other functions to support integrated communication needs. Flexibly used in military communication private networks, public security private networks, emergency communication private networks, industry information private networks, regional broadband private networks, wireless monitoring private networks, collaborative management private networks and intelligent transmission private networks, etc. For military communications, anti-terrorism emergency response, public security law enforcement, security activities, emergency rescue, fire command, forest fire prevention, forest monitoring, civil air defense/earthquake, power inspection, digital oil field, drone swarm, vehicle interworking, ship formation, maritime communications, airport ground handling, subway emergency response, highway construction, hydrology monitoring, mobile mining and sowing, medical treatment and other fields, Provide stable, reliable, timely and efficient high-definition video, multi-channel data, clear voice and visual command and dispatch.

Functional Features

1. Fast temporary deployment control, can be used as a command terminal node

2. adopts three-screen command and dispatch to retrieve all kinds of data information in real time

3. 64-bit Win10 operating system, i7 processor, 8GB running memory and 256GB storage memory

4. Intelligent dynamic routing algorithm without manual intervention

5. Boot immediately, no need to set

6.The high-lighted display keeps the screen clear in strong sunlight

7. reinforced design, shock absorption and anti fall, effectively resist a variety of severe use environment

Technical parameter table

Host characteristics	operating system	64-bit Windows 10 operating system
	processor	Intel i7
	Display	15.6-inch high-definition high-brightness screen
	Run/Storage	8G/256G
Wireless Features	Operating frequency	1400-150OMHz/Burst rate can be customized
	Carrier bandwidth	2/5/10/20MHz adjustable/2-20MHz customizable
	MIMO Mode	2T2R/1T2R adaptive/customizable 3T3R
	Transmission system	COFDM
	Peak rate	70Mbps@20MHz/support fixed rate
	Transmit power	33dBm (2w)
	Receiving sensitivity	-96dBm@2MHz
	Encryption	AES128/256
Features	Network Features	10/100 Ethernet auto-sensing
	Positioning	BD+GPS
	Power supply function	Built-in large capacity battery
	WIFI FUNCTION	Support AP mode
Physical properties	Device size	≤416*316*118mm
	weight	≤13.8kg
	Protection level	IP65
	Operating temperature	-40℃~+70℃
	Power consumption	≤25W@33dBm
	Storage temperature	-45℃~+85℃
Networking capabilities	Networking capabilities	Support 32-node networking/customizable 64-node networking
	Multi-hop capability	>8 jumps
	Network access time	Access the network 8 seconds after system startup
	Network topology	Centerless network/star network/chain network/grid network, etc.
	Network Transparent Transmission	Support network transparent transmission function

Application Fields

Application Fields

The product adopts MESH ad-hoc networking technology, which can be flexibly applied to military communication private networks, public security private networks, emergency communication private networks, industry information private networks, regional broadband private networks, wireless monitoring private networks, collaborative management private networks and intelligent transmission private networks, etc. For military communications, anti-terrorism emergency response, public security law enforcement, security activities, emergency rescue, fire command, forest fire prevention, forest monitoring, civil air defense/earthquake, power inspection, digital oil field, drone swarm, vehicle interworking, ship formation, maritime communications, airport ground handling, subway emergency response, highway construction, hydrology monitoring, mobile mining and sowing, medical treatment and other fields, Provide stable, reliable, timely and efficient high-definition video, multi-channel data, clear voice and visual command and dispatch.

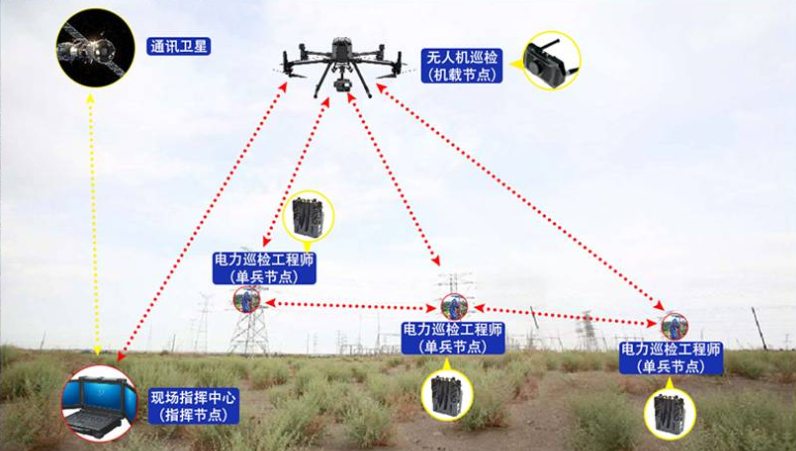

In remote power maintenance areas, the public network signal has a blind area. The power maintenance personnel carry the integrated individual soldier network equipment, deep into the power maintenance site, and carry the communication equipment such as vital signs sensors and helmet cameras. The video signal, voice signal, location information and data information of the power maintenance personnel are transmitted to the field command node through individual personnel AD hoc network. Through the various information returned by the power maintenance personnel, the on-site command personnel can make correct, rapid and stable judgments in the face of emergencies, and arrange the ambulance personnel to rush to the emergency scene for rescue in the first time. The on-site command node can be interconnected with the back-end command center through the satellite network and 4G/5G network. Synchronize the audio and video information and sensor information of power maintenance personnel to the back-end command center. Realize the information exchange between command personnel and power maintenance personnel.
