Product Introduction

outdoor base station ad hoc network has the characteristics of corrosion resistance, rainproof, high temperature resistance, etc., and can be mounted on fixed objects such as base station towers. Through a certain height, the communication coverage between ad hoc networks can be effectively expanded to solve problems such as long-distance signal transmission. Base stations can be interconnected through wires, and individual terminals can switch smoothly between base stations to ensure uninterrupted services. The product can be used in outdoor long-term unattended environments, and can also be used as a backup communication link for operators to solve problems such as base station disconnection and islanding when the operator’s network is affected by natural disasters.

Features

1 . Broadband communication can support 1420-1520MHz broadband communication band, effectively cope with complex terrain environment, and has the ability to customize the frequency band

2. Efficient management Provide PC and APP management tools, support dynamic topology, link status monitoring, real-time data configuration and other functions

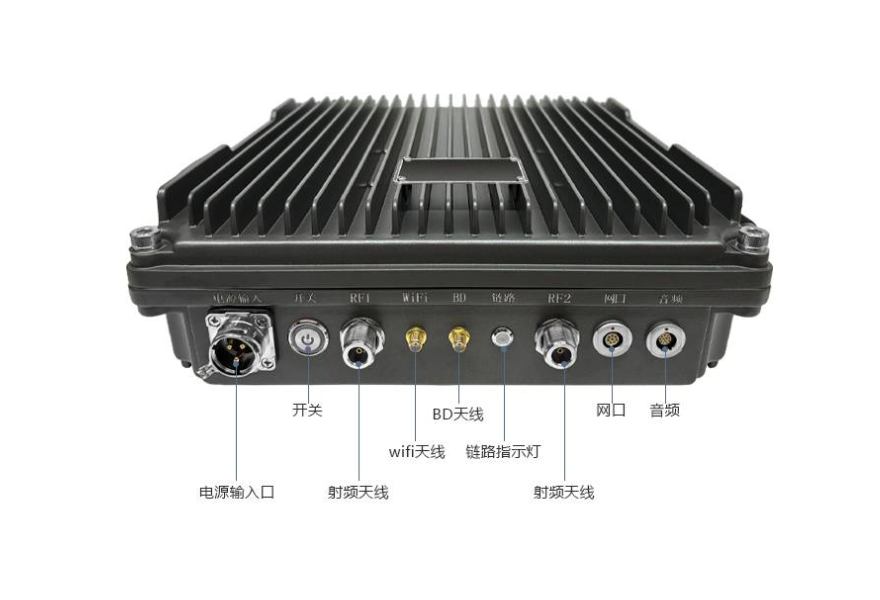

3. Interface design It has multiple interfaces such as network port and voice port, which can be connected with various types of terminals and data can be connected to the Web platform

4. Easy to operate Easy and efficient operation, one-button startup, can be set up anywhere in any scene, and can quickly respond to emergency events

5.  Intelligent frequency selection Supports intelligent frequency selection, 5/10/20MHz bandwidth adjustable

Application Cases

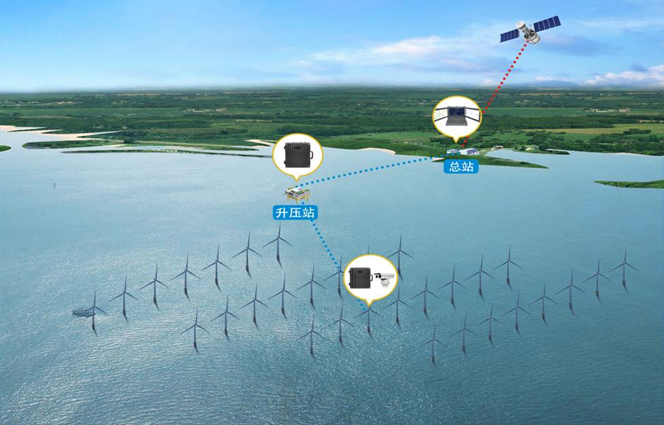

There are problems such as lack of public network signals and high cost of laying submarine cables at sea. Wireless Mesh ad hoc networks can provide network access services anytime and anywhere, and can carry out wireless data transmission in complex big data or environments with high network security requirements. Outdoor ad hoc base stations are equipped on wind turbines to provide wireless broadband ad hoc network coverage, and large-scale offshore wind power networking is established to transmit various wind turbine data and cameras back to the substation (boosting station) 5-10 kilometers away. The boosting station has a satellite network, which is transmitted back to the onshore terminal through the public network.

Networking Mode

Product Parameters

Wireless Features

Operating frequency	1420-1520MHz
Carrier bandwidth	5/10/20MHz adjustable
MIMO Mode	2T2R
Transmission system	COFDM
Peak rate	90Mbps@20MHz
Transmit power	2*10W
Receiving sensitivity	≤-100dBm
Networking	Centerless network/star network/chain network/grid network, etc.
Encryption	AES128/256
Networking capabilities	Same frequency networking ≥ 32 nodes

Features

Positioning	BD+GPS
WiFi Features	Support AP mode
Remote Reboot	Support 4G remote restart
HDMI Function	Support HDMI input function
Network Features	Ethernet interface
Audio Features	Support PTT voice
HDMI Function	Support HDMI input function
Control Function	Mobile APP and PC web management

Physical properties

Equipment Net Dimensions	≤350*348*105mm
Net weight of equipment	≤7.5kg
Operating temperature	-30℃~+65℃
Protection level	IP67
