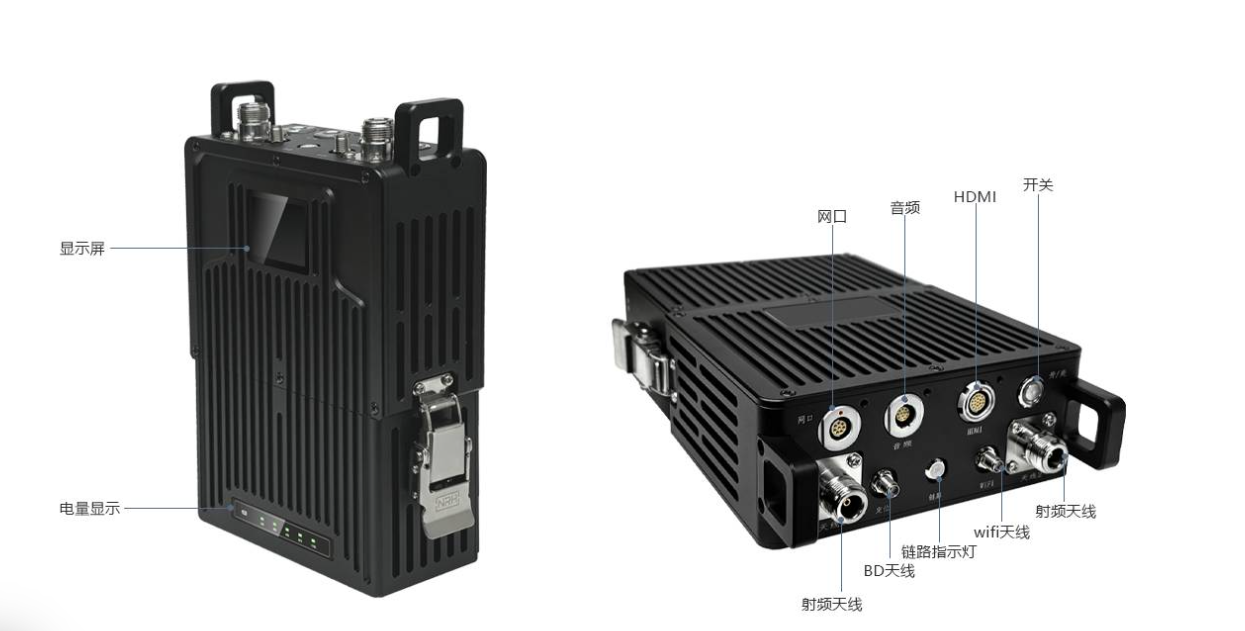

Product Introduction

Portable individual soldier carrying platform adopts the latest appearance technology design, compact structure, solid interface, suitable for a variety of carrying methods. The radio supports 1420-1520MHz broadband communication band, and can transmit HDMI high-definition video to the back-end command platform in real time. After the product is turned on, the dynamic communication network can be quickly established, without manual configuration, and the radio can be quickly connected to the network to provide multimedia interaction services such as voice group call, video return, GIS positioning, and personnel perception for emergency command, realizing efficient collaboration. IP67 military grade design, can cope with a variety of harsh environmental areas.

Features

1 . Broadband communication can support 1420-1520MHz broadband communication band, effectively cope with complex terrain environment, and has the ability to customize the frequency band

2. Ultra-long standby working time ≥6 hours, standby time ≥12 hours, in the field, no power working environment to maintain high efficiency

3. Intelligent frequency selection Intelligent frequency selection is supported. The 5/10/20MHz bandwidth is adjustable

4. Efficient management Provides management tools on PCS and apps, including dynamic topology, link status monitoring, and real-time data configuration

5.  Flexible networking no center AD hoc network, flexible carrier bandwidth can be configured, such as point-to-multipoint, chain relay, mesh, hybrid and other network topologies

6. High reliability navigation interface design, stable interface, with strong anti-vibration, anti-water and other protection performance

Application Cases

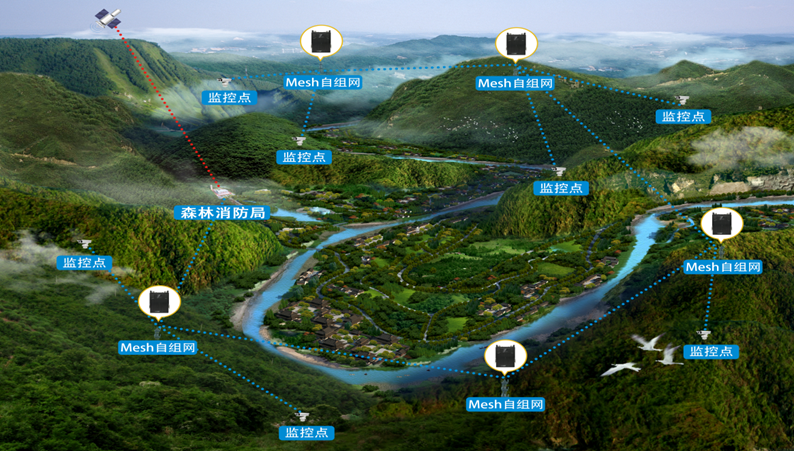

Effective fire prevention measures are large-scale, large-scale real-time monitoring of the forest area 24 hours a day, the installation of cameras and AD hoc networking equipment in the forest height, through the solar power supply system to supply cameras and equipment for a long time, the camera has infrared thermal imaging induction technology and video image intelligent recognition, After the fire source is found in the forest, it is transmitted to the forest fire station through the wireless AD hoc network. When the alarm is issued, it indicates that the temperature in the current area is high, there is a fire danger, the ignition point has accurate positioning, and the relevant information is reported to the firefighters. The fire team carries the fire extinguishing equipment to extinguish the fire, which is more timely, more accurate and more effective in preventing the fire.

Networking Mode

Product Parameters

Wireless Features

Operating frequency	1420-1520MHz
Carrier bandwidth	5/10/20MHz adjustable
MIMO Mode	2T2R
Transmission system	COFDM
Peak rate	90Mbps@20MHz
Transmit power	2*5W
Receiving sensitivity	≤-100dBm
Networking	Centerless network/star network/chain network/grid network, etc.
Encryption	AES128/256
Networking capabilities	Same frequency networking ≥ 32 nodes

Features

Positioning	BD+GPS
WiFi Features	Support AP mode
HDMI Function	Support HDMI input function
Network Features	Ethernet interface
Audio Features	Support PTT voice
HDMI Function	Support HDMI input function
Control Function	Mobile APP and PC web management

Physical properties

Equipment Net Dimensions	175*60*236mm
Net weight of equipment	≤2.5kg
Operating temperature	-30℃~+65℃
Protection level	IP65
Working hours	≥6h
